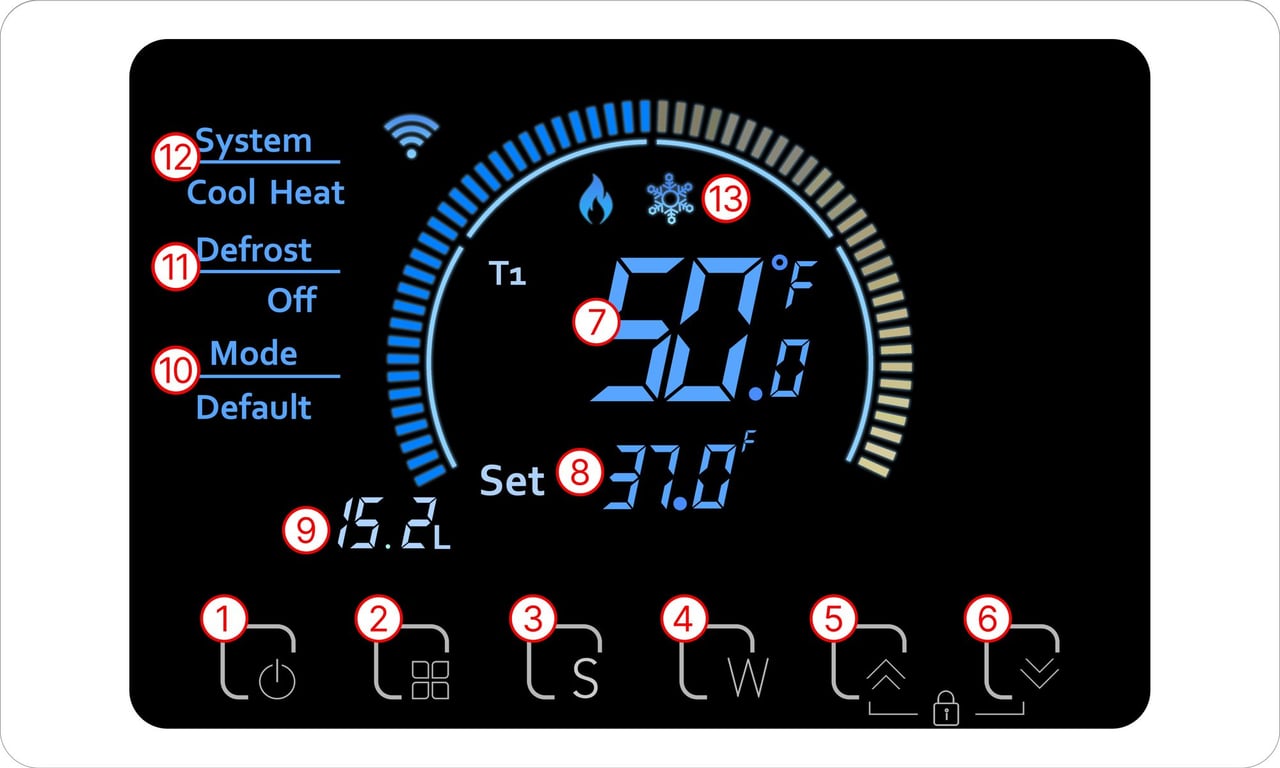

The Control Panel
Navigating the Chiller Controls
Control Buttons
1. Power Button
Press and hold to turn the Chiller ON and OFF.
2. Mode Button
Press and hold for 3 seconds to switch between Celsius and Fahrenheit.
3. Setting Button
Press to initiate temperature setting mode
4. Wifi Button
Press and hold for 5 seconds to put the ice bath in discover mode to connect to the Tuya App.
5. Up Arrow
Navigate up ↑
6. Down Arrow
Navigate down ↓
Navigate down ↓
Display Indicators
7. Tub Temperature
The current temperature of the ice bath.
8. Set Temperature
The desired temperature you have selected for the ice bath.
9. Water Flow Indicator
The water flow rate in liters per minute. 12 to 18 liters/minute is normal.
10. Mode Indicator
Displays ice bath operating mode. (Default is normal function)
11. Defrost Indicator
Displays when ice bath is defrosting.
12. System Indicator
Shows if Chiller is in COOL mode cooling, or HOT mode heating.
13. Compressor Status
Shows if Chiller is actively cooling with a snowflake, or heating with a flame.
14. Wi-Fi Indicator
Blank for disconnected, blinking for setup mode, solid for connected.
Using the Control Panel
Operating your Chiller
Setting the Temperature
- Press the Setting Button ⓷.
- Press or hold Up ⓹ or Down ⓺ arrows to select desired temperature.
- Press the Setting Button ⓷ again to confirm temperature selection.
Adjusting the Ozone Function
- Press the Setting Button ⓷ and press and hold the Wifi Button ⓸ for 5 seconds until the Tub Temperature ⓻ shows the Ozone Display.
- Use the Up ⓹ and Down ⓺ Arrows to set the Ozone from 0 (off) to 1, 2, or 3 minutes. We recommend setting the Ozone to 2 minutes.
- If activated the ice bath uses ozonation for 1 to 3 minutes every 15 minutes of operation.
- Press the Setting Button ⓷ to confirm the Ozone selection.
How to Engage Child Lock
- Press and hold both Up ⓹ + Down ⓺ buttons for 3 seconds to lock the control panel.
- Press and hold both Up ⓹ + Down ⓺ buttons for 3 seconds again to unlock.
